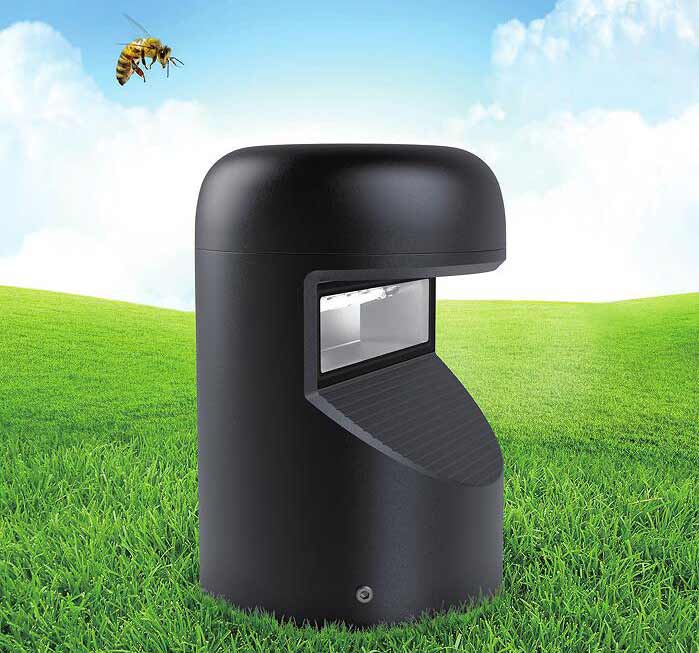

優勢一:結構強，防護高
玻璃內嵌，壓鑄鋁外殼強度高;圓弧面降低損壞率，防人為破壞;
可承受50ka罐擊，抗踩踏。
優勢二: 180°擴散式配光，勻光性強

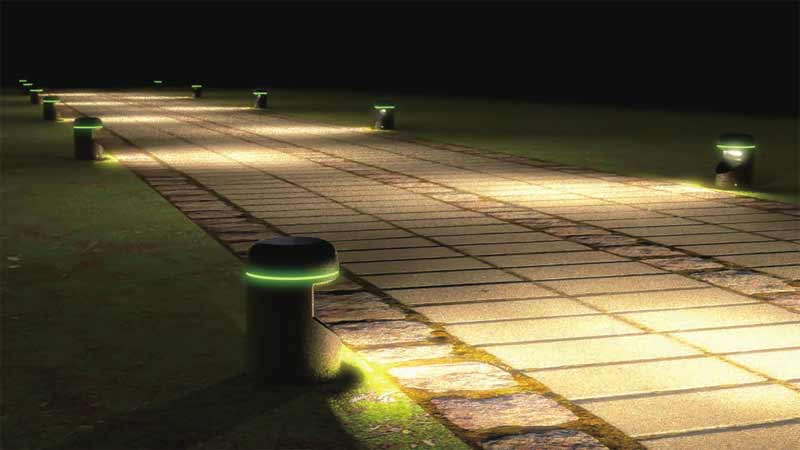

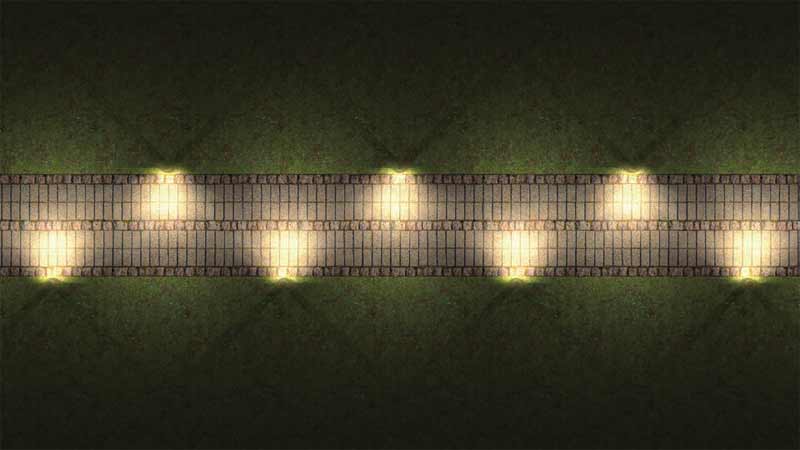

180°極限配光，超長覆蓋，勻光性強。同時兼顧道路照明+草坪照明。解決原有草坪燈照射范圍小、距離短的問題;補充園路、汀步、草坪等低位照明不足問題。

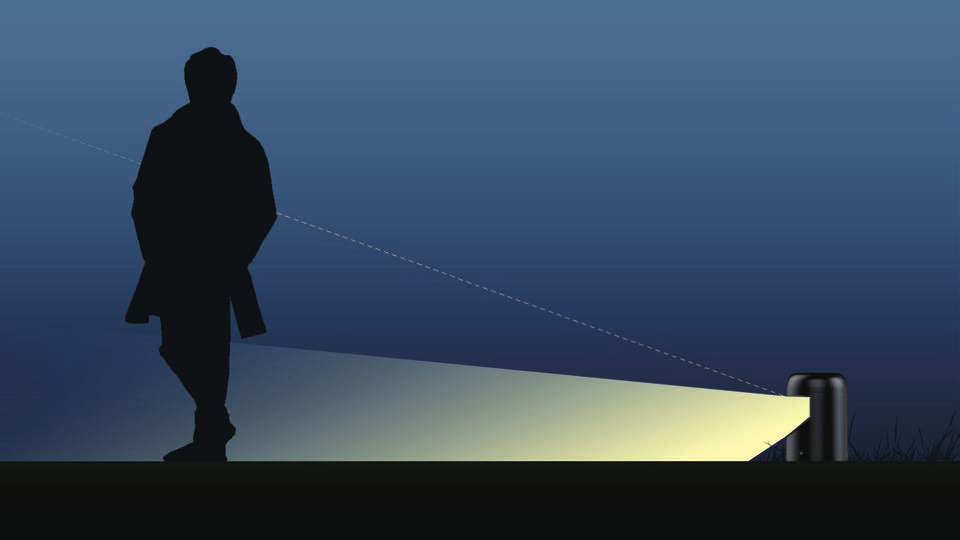

優勢三:低位截配光設計--無眩光
低位截配光，解決草坪燈眩光重的問題，兼顧功能照明，四米外人眼無眩光。

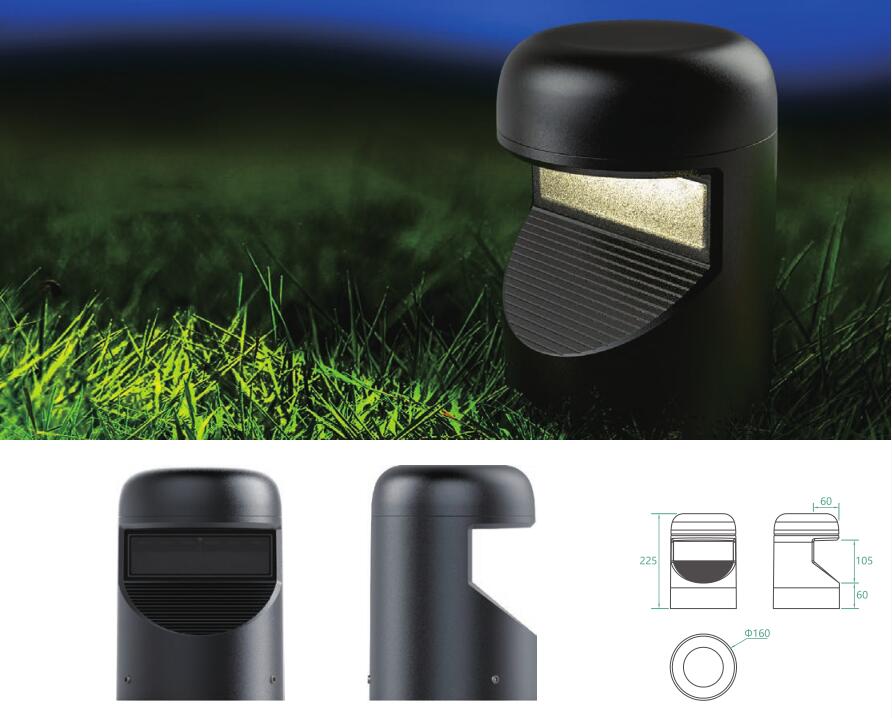

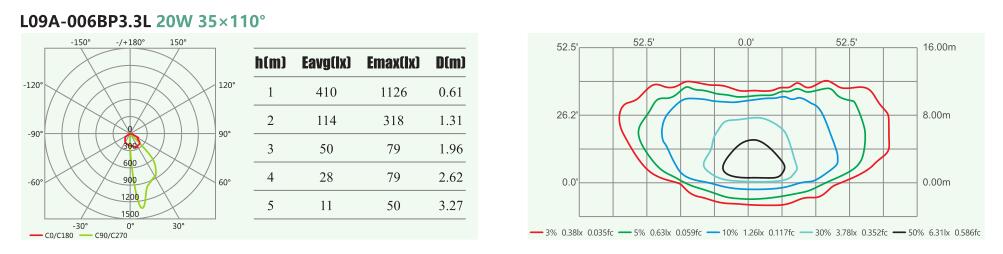

L09A-006 BP3.3L
| Rated Power | Input Voltage | LED Quantity | Optical Angle | Luminous flux | Net Weight | Lamp Size | Gross Weight/Packing Size | |
 | 20W | DC 24V/AC24V | 6 pcs | 35x110° | 1420lm | 2.4kg | φ160x 225mm | 2.6kg/280x200x200mm(1pcs/box) 10.0kg/380x 380x300mm(4pcs/box) |
L09A-G06 BP3.3L
| Rated Power | Input Voltage | LED Quantity | Optical Angle | Luminous flux | Net Weight | Lamp Size | Gross Weight/Packing Size | |
| 20W | DC 24V/AC24V | 6 pcs | 35x110° | 1420lm | 2.4kg | φ160x 230mm | 2.6kg/280x200x200mm(1pcs/box) 10.0kg/380x 380x300mm(4pcs/box) |
L09A-T01B
| Rated Power | Input Voltage | LED Quantity | Optical Angle | Luminous flux | Net Weight | Lamp Size | Gross Weight/Packing Size | |
| 20W | DC 24V/AC24V | 1 pcs | - | - | 3.0kg | φ160x 225mm | 3.2kg/280x200x200mm(1pcs/box) 12.5kg/380x 380x300mm(4pcs/box) |
